1. High speed with 1 meter/sec moving tolerance; meets the needs of scanning a large number of barcodes.
2. A big scanning window improves the decoding speed.
3. A 1 million-pixel global exposure camera can easily decode different sizes of 1D&2D barcodes in various environments.
4. High performance MCU can handle continuous scanning of a large number of barcodes.

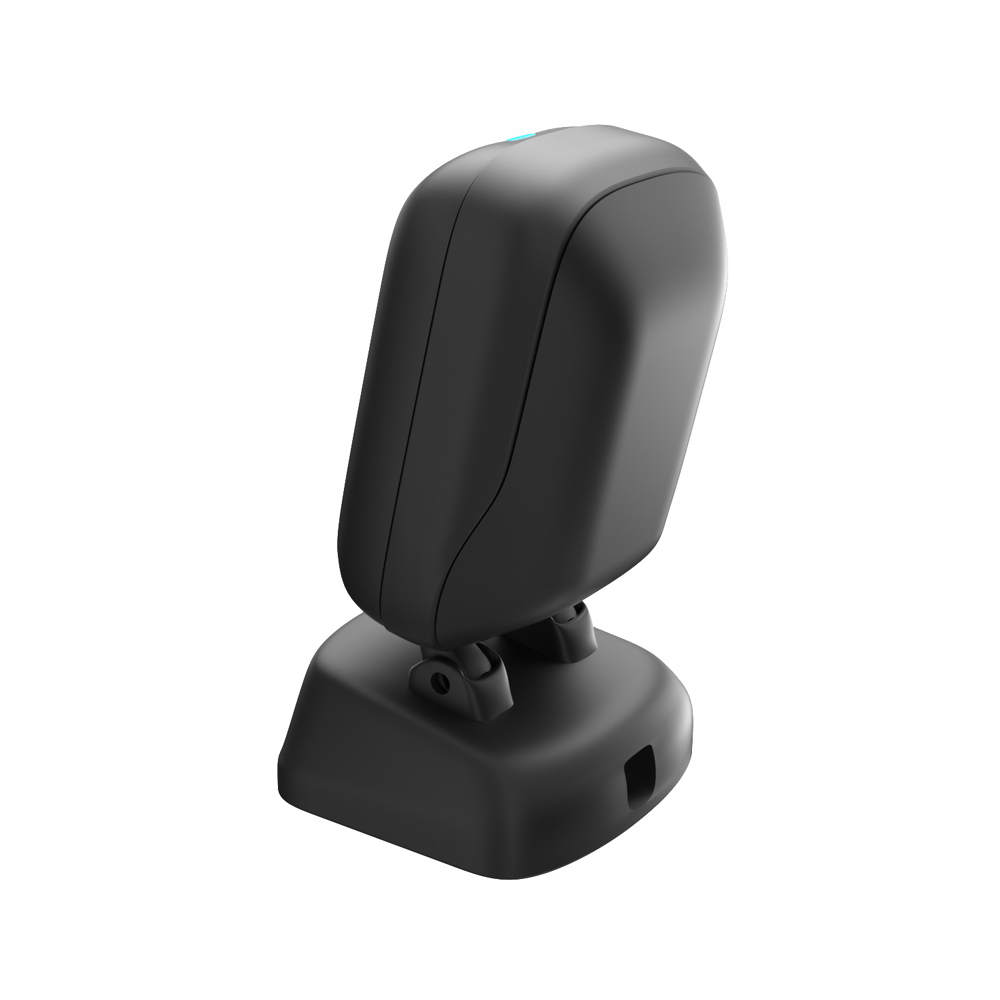

5. The scanner is rotatable, so the reading angle can be adjusted.
6. Support reading ID card OCR.
7. Support at least 10% screen luminance for reading a 2D barcode.
| Performance Parameters | |||||||||
| Communication Mode | USB（USB-KBW，USB-COM），RS232（optional） | ||||||||
| Image sensor | CMOS global shutter | ||||||||
| Resolution | 1 million pixel (1280 * 800) | ||||||||
| Resolution | ≥4mil/0.1mm（PCS90%,CODE 39） | ||||||||
| Indicator light | light blue | ||||||||
| Lighting lamp | Red LED fill light | ||||||||
| Depth of field | 10mm~350mm（different barcode range） | ||||||||
| Decoding Speed | 100CM/S | ||||||||
| Reading Mode | Continuous, auto-sense, command control | ||||||||
| Prompt Mode | beeper, LED | ||||||||
| Field angle | Horizontal58 ° Vertical 43 ° Diagonal 70 ° | ||||||||
| Reading angles | Test Conditions：CODE39,10mil/0.25mm,PCS90%. Roll: ±360°,Pitch:±70°,Skew: ±65° | ||||||||
| Printing contrast | ≥20% | ||||||||
| Ambient light illumination | Dark environment, natural light indoor | ||||||||
| Decoding capability | 1D：UPC-A，UPC-E，EAN-8，EAN-13，ISBN, ISSN, Code 128， GS1-128，ISBT, Code 39，Code 32, Code 93，Code 11,Codabar（NW-7），Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5(Straight 2 of 5)，Standard 2 of 5（IATA 2 of 5），NEC 2of 5， MSI，Telepen, Trioptic， BC412, Febraban, Coupon. 2D: QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF 417， MaxiCode, Aztec，HanXin Code, Pharma Code(One-Track), Codablock A, Codablock F, Dot Code, Grid Matrix, etc. Other compound code：GS1 Databar(Omnidirectional, Limited, Expanded)，GS1 Composite Code, TLC 39 Code. Chinese ID Card OCR, Passport OCR, etc. Postal code：HongKong 2 of 5(China Post), Korea Post, Australian Post, British Post, USPS Intelligent Mail, Japanese Post, Planet Code, Postnet Code, UPU 4-State, KIX Code |
||||||||
| Mechanical/Electrical Performance | |||||||||
| Weight | 217.2g(without cable) | ||||||||

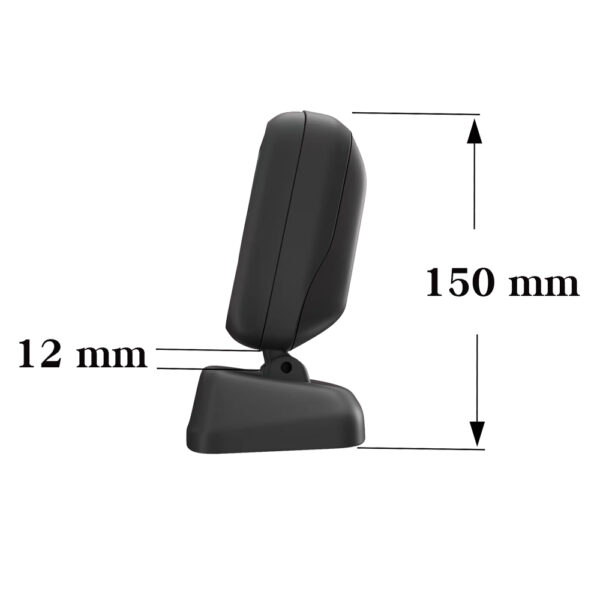

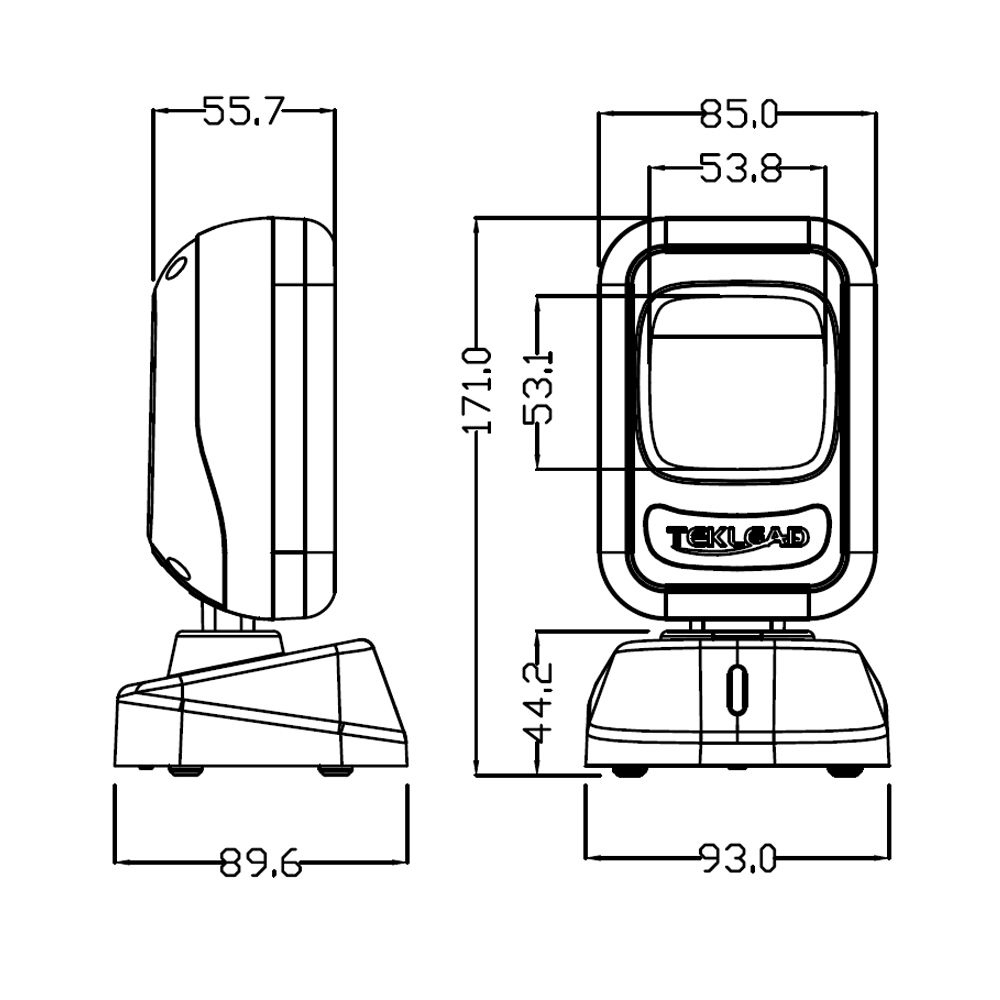

| Size | L93mm * W89.6mm * H171mm | ||||||||
| Cable length | 1.8m | ||||||||
| Interface type | 10PIN crystal head | ||||||||
| Working voltage | DC 5V 1A | ||||||||
| Current | 150mA（Average Work）, 530mA(Max) | ||||||||
| Working Environment | |||||||||
| Working temperature | -20℃ to 50℃ | ||||||||
| Storage temperature | -40℃ to 60℃ | ||||||||
| Working humidity | 5% to 95%（non-condensing） | ||||||||
| Transportation vibration test | 10H@125RPM | ||||||||
