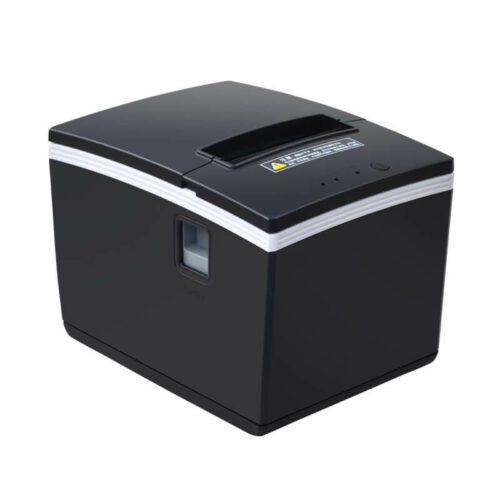

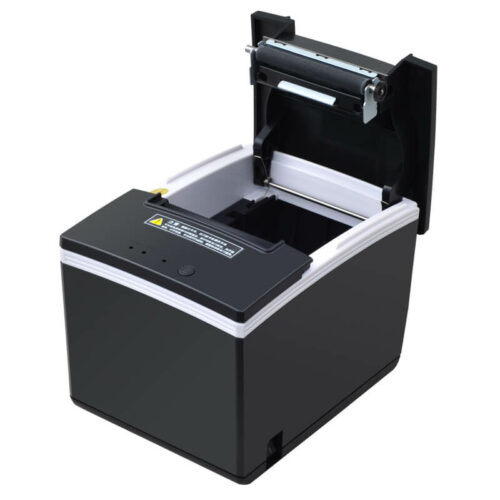

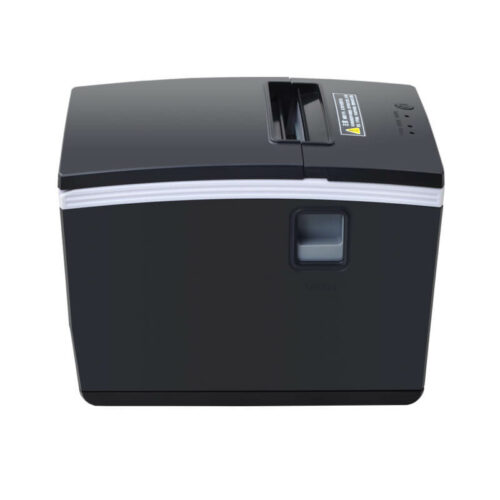

Thermal printer N260H

Category:

Description

View Brochure

1. 80mm thermal receipt printer
2. Printing speed: 260mm/s

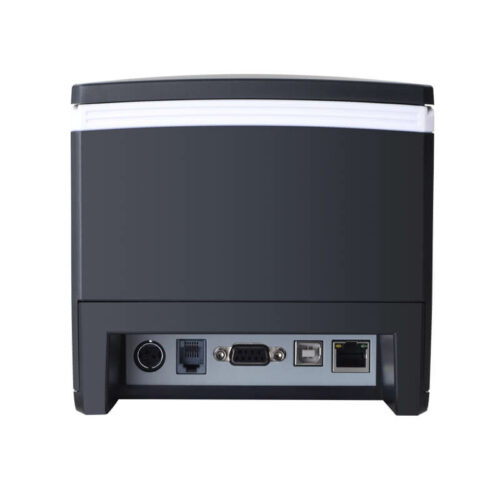

3. Ports: Serial+USB+Ethernet
4. With auto cutter
5. Support wall mounted
6. Application: Restaurant, Entertainment, Logistic, Hotel, Retail, Supermarket

Printing
Printing method Direct thermal
Paper width 79.5±0.5mm
Printing speed 260mm/s
Interface Serial+USB+Ethernet
Print command Compatible ESC/POS
Driver Windows / Android / OPOS / Linux
Cutter
Auto cutter Yes
Cutter life 1.5 million cuts
Barcode Character
Character size ANK, Font A: 1.5×3.0mm (12×24 dots) Font

B:1.1×2.1mm (9×17 dots) Chinese, traditional

Chinese:3.0×3.0mm (24×24 dots)

Extension character sheet PC347 (Standard Europe), Katakana, PC850(Multilingual),

PC860(Portuguese), PC863(Canadian-French), PC865(Nordic),

West Europe, Greek, Hebrew, East Europe, Iran, WPC1252,

PC866(Cyrillic#2), PC852(Latin 2), PC858, IranII, Latvian, Arabic, PT151(1251)

Barcode types UPC-A/UPC-E/JAN13(EAN13) / JAN8(EAN8) /

CODE39 / ITF / CODABAR / CODE93 /

CODE128

Buffer
NV Flash 256 K Bytes
SRAM 64 K Bytes
Power
Power adaptor Input: AC 110V/220V, 50-60Hz
Power source Output: DC 24V/2.5A
Cash drawer output DC 24V/1A
Physical characteristics
Weight 1.12kg
Dimension 192x140x140mm (WxDxH)
Environmental Requirements
Operating temperature 0-45℃, 10-80%RH
Storage temperature ﹣40-60℃, ≤93%RH
Reliability
Printer head life 150KM
