| Brand |
SysePOS |
| Model |
G516 |
| Material |
Aluminum folding stand & ABS plastic screen |
| Solutions |
A |
B |
C |
| System Configurations |
CPU processor |
Intel J6412 2.0GHz |
Intel J1900 2.0GHz |
Intel Core i3 / i5 / i7 |
| Storage device |
Mini SATA SSD 32GB, 64GB, 128GB, 256GB or 2.5” HDD 1TB |
| Memory |
Single channel DDR3*1, 4GB up to 8GB |
| OS support |
Windows 10 Pro / Windows 10 IoT |
| Display |
Main display |
15” with LED Backlight (1024*768) |
| 300:1 Contrast, 350cd/㎡ Brightness |
| Touch panel |
|
Capacitive touch screen |
| I/O Interface |
Serial |
2 |
1 |
| USB |
5*USB type 2.0, 1*USB type 3.0 |
6*USB type 2.0 |
| LPT |
1 |
Not supported |
| HDMI |
Not Supported |
1 |
| VGA |
1 |
| DC |
1 |
| LAN |
1*10/100/1000Mbps Ethernet |
| Audio |
1*Mic-in, 1*Audio-out |
| Options |
Customer display |
VFD type (2*20), Alphabet & Numeric |

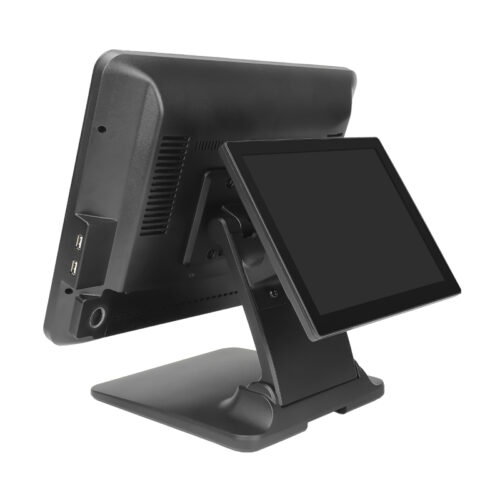

| Second display |
9.7-inch LED display |
| MSR |
Track 1&2&3 |

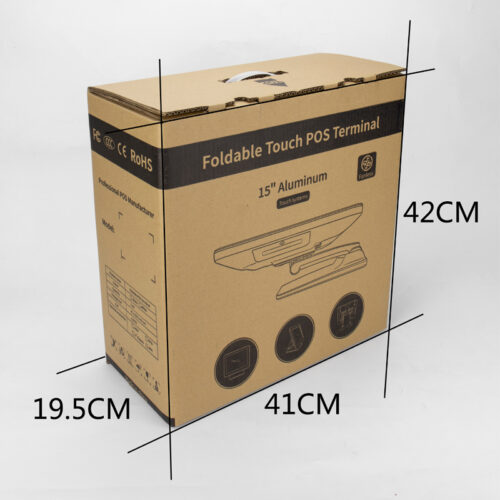

| Physical Dimension |
Dimension |
420*195*410mm |
| Weight |
5.85kg |
| Color |
Black |
| Environment |
Power supply |
DC 12V, 5A Adaptor |
| Temperature |
Operating:-10℃ to 40℃, Storage:-20℃ to 60℃ |
| Humidity |
Operating:20%-80%, Storage:20%-90% |
| Certifications |
CE, FCC, RoHS, CCC |
